DISS 3.2.GreDaSS: Seismogenic Source GRCS810 - North Aegean Basin (NAB)
Source Info Summary Commentary Pictures References

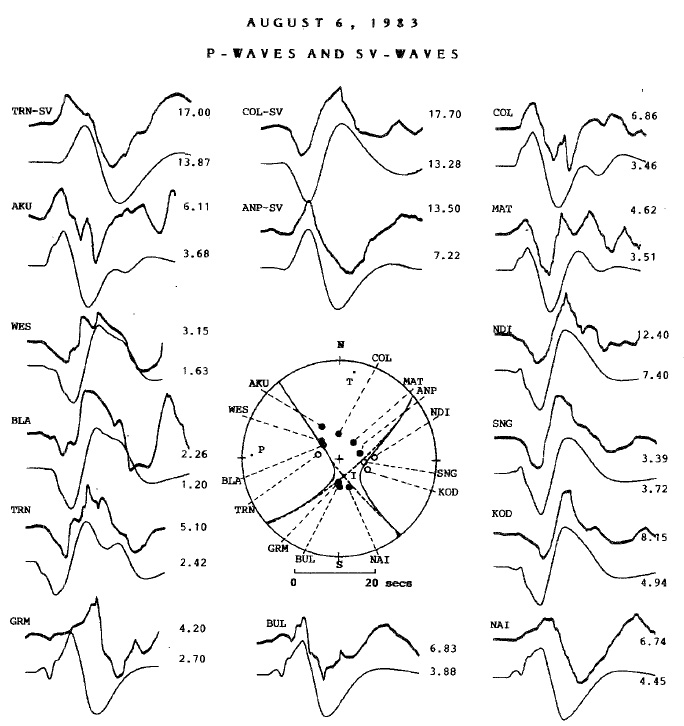

Figure 14 - Focal mechanisms of the August 6, 1983 earthquake
Observed (top) and synthetic (bottom) P waveforms for the event of August 6, 1983. The waveforms are normalized to their maximum amplitude, indicated to the right of each trace. The moment tensor nodal surfaces (solid lines) and its major double-couple (dashed lines) are also shown in a lower hemisphere equal area projection. The location and the polarities of P-wave first motions are also shown on the figure. [from Kiratzi et al. (1991)].

GRCS810F14 - Focal mechanisms of the August 6, 1983 earthquake
